Cross Part No.: 5J-4773,5J4773, 02090-11265, 154-71-41270
Weight: 0.155kgs
Brand: OEM / Aftermarket
Replacement Brand: CATERPILLAR, CAT
Machinery Model: 12H ES, 12K, 12M, 140K, 140M, 143H, 14G, 14H, 14H NA, 14M, 160H,7A, 814…
Thread Specification: 3/4″UNC-10X2-1/2″
Material: Steel 40Cr, 35CrMo
Grade: 8.8, 10.9-12.9
Color: Black or customized
Process: Precision die stamping+integral quenching and tempering+thread precision finishing
Packing: Standard carton & plywood case packaging
Tensile: >1100Rm-N/mm
Hardness: 38-44HRC
Torque: Standard Cat high-load torque
| Part number | Weight | Dimension | Cross part number | Material | Grade | Description |
| 4F3672 | 0.13 | 3/4″UNC-10X2″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4F7827 | 0.14 | 3/4″UNC-10X2-1/4″ | 12.9 | 35crmo | Cutting edge bolt | |
| 5J4773 | 0.155 | 3/4″UNC-10X2-1/2″ | 02090-11265/154-71-41270 | 12.9 | 35crmo | Cutting edge bolt |
| 5J4771 | 0.165 | 3/4″UNC-10X2-3/4″ | 234-70-32250/02090-11270 | 12.9 | 35crmo | Cutting edge bolt |
| 4F0138 | 0.18 | 3/4″UNC-10X3″ | 02090-11275/154-70-11143 | 12.9 | 35crmo | Cutting edge bolt |
| 1J6762 | 0.19 | 3/4″UNC-10X3-1/8″ | 02090-11280/234-70-32270 | 12.9 | 35crmo | Cutting edge bolt |
| 5F8932 | 0.21 | 3/4″UNC-10X3-1/2″ | 02090-11290 | 12.9 | 35crmo | Cutting edge bolt |
| 5F8933 | 0.22 | 3/4″UNC-10X3-3/4″ | 02090-11205 | 12.9 | 35crmo | Cutting edge bolt |
| 1J0962 | 0.235 | 3/4″UNC-10X4″ | 02091-11210 | 12.9 | 35crmo | Cutting edge bolt |
| 4F0253 | 0.26 | 3/4″UNC-10X4-1/2″ | 02091-11215 | 12.9 | 35crmo | Cutting edge bolt |
| 02091-11220 | 0.29 | 3/4″UNC-10X5″ | 12.9 | 35crmo | Cutting edge bolt | |
| 2J3506 | 0.05 | 3/4″UNC-10″ | 154-70-22270/234-70-32290/02290-11219/3K0453 | 10 | 45 | Hex nut |
| 5P8248 | 0.03 | 3/4″ | 01643-21845 | 10 | 45 | Washer |

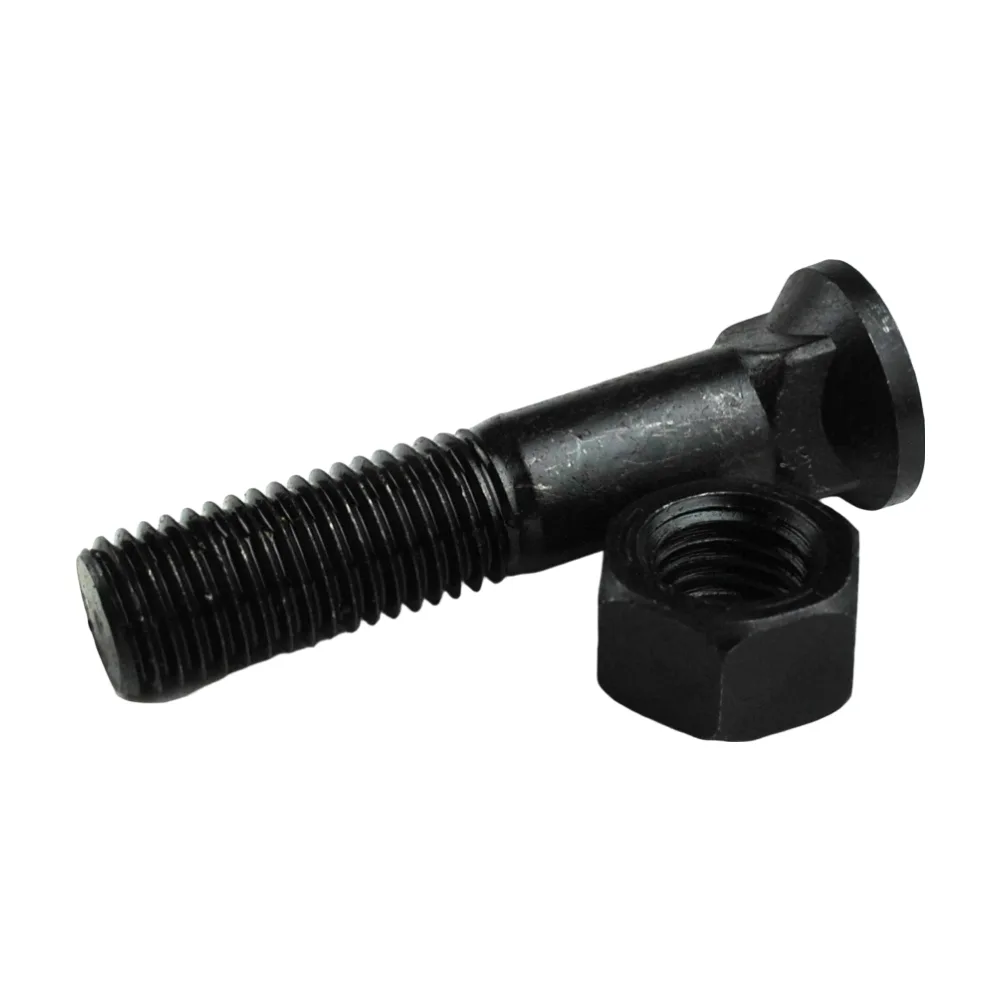

5J4773 Cat style plow bolt 3/4″UNC-10X2-1/2″ can be widely used for cuttding edges, blades, steel track parts as well as other components. It`s heavy-duty lock nut, fastening nut, blade & track fixing nut, CAT dozers, graders & scraper wear parts, fully compatible with CAT heavy-duty fixing nuts, 2J3506 lock nuts and complete heavy-load fastening assembly system.
