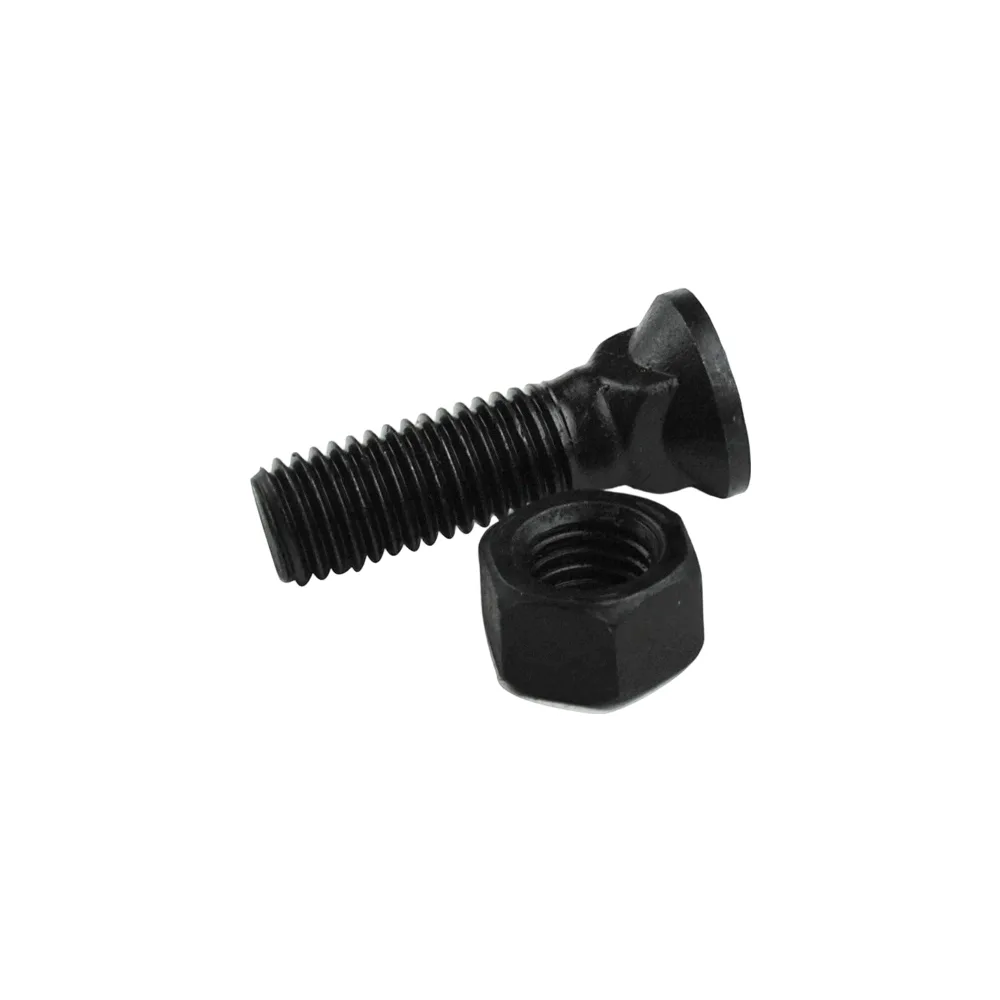

Plow bolt 4F-3654 Caterpillar style Plow bolts

4F-3654 Caterpillar style Plow bolts Standard Specification：

Cross Part No.: 4F-3654,4F3654, 02090-11050

Weight: 0.10 kgs

Brand: OEM / Aftermarket

Replacement Brand: CATERPILLAR, CAT

Machinery Model: 120, 120G, 120H, 12M, 140H, 140M, 14E, 160M, 216B3, 226B3, 228, 236B3, 236D, 242B3, 242D, 246C, 246D, 247B3, 252B3, 256C, 257B3, 257D, 259B3, 259D, 262C

Thread Specification: 5/8″UNC-11X2″

Material: Steel 40Cr, 35CrMo

Grade: 8.8, 10.9-12.9

Color: Black or customized

Process: Precision die stamping+integral quenching and tempering+thread precision finishing

Packing: Standard carton & plywood case packaging

Tensile: >1100Rm-N/mm

Hardness: 38-44HRC

Torque: Standard Cat high-load torque

Part number	Weight	Dimension	Cross part number	Material	Grade	Description
4F3664	0.08	5/8″UNC-11X1-1/2″		12.9	35crmo	Cutting edge bolt
4F3653	0.09	5/8″UNC-11X1-3/4″		12.9	35crmo	Cutting edge bolt
4F3654	0.1	5/8″UNC-11X2″	02090-11050	12.9	35crmo	Cutting edge bolt
3F5108	0.11	5/8″UNC-11X1-1/4″	232-70-12450/02090-11060	12.9	35crmo	Cutting edge bolt
4F3656	0.12	5/8″UNC-11X2-1/2″	232-70-12590	12.9	35crmo	Cutting edge bolt
4F3657	0.13	5/8″UNC-11X2-3/4″	232-70-12460/5610145	12.9	35crmo	Cutting edge bolt
4F3658	0.14	5/8″UNC-11X3″	02090-11080	12.9	35crmo	Cutting edge bolt
4F3665	0.16	5/8″UNC-11X3-1/2″		12.9	35crmo	Cutting edge bolt
4F0391	0.17	5/8″UNC-11X3-3/4″		12.9	35crmo	Cutting edge bolt
4F3671	0.18	5/8″UNC-11X4″		12.9	35crmo	Cutting edge bolt
4K0367	0.03	5/8″UNC-11″	02290-11016/232-70-12480/8660481	10	45	Hex nut
5P8247	0.02	5/8″	01643-31645/8T4122	10	45	Washer

Related Matching Parts:

4F-3654 Cat style plow bolt 5/8″UNC-11X2″ can be widely used for cuttding edges, blades, steel track parts as well as other components. It`s heavy-duty lock nut, fastening nut, blade & track fixing nut, CAT dozers, graders & scraper wear parts, fully compatible with CAT heavy-duty fixing nuts, 4K-0367 lock nuts and complete heavy-load fastening assembly system.
