Cross Part No.: 5P-8361,5P8361, 02091-12030, 198-71-21730
Weight: 0.9kgs
Brand: OEM / Aftermarket
Replacement Brand: CATERPILLAR, CAT
Machinery Model: 345D L, 365B, 365B, 365C,L, 374D L, 375, 385B, 385C, 385C FS, 385C L, 950H, 960F, 962H…
Thread Specification: 1-1/4″UNC-7X5″
Material: Steel 40Cr, 35CrMo
Grade: 8.8, 10.9-12.9
Color: Black or customized
Process: Precision die stamping+integral quenching and tempering+thread precision finishing
Packing: Standard carton & plywood case packaging
Tensile: >1100Rm-N/mm
Hardness: 38-44HRC
Torque: Standard Cat high-load torque
| Part number | Weight | Dimension | Cross part number | Material | Grade | Description |
| 8T9079 | 0.65 | 1-1/4″UNC-7X3-1/4″ | 02091-12005 | 12.9 | 35crmo | Cutting edge bolt |
| 6V6535 | 0.7 | 1-1/4″UNX-7X3-3/4″ | 02091-12010 | 12.9 | 35crmo | Cutting edge bolt |
| 5P8823 | 0.76 | 1-1/4″UNC-7X4″ | 198-71-21710 | 12.9 | 35crmo | Cutting edge bolt |
| 6V8360 | 0.83 | 1-1/4″UNC-7X4-1/2″ | 198-71-21720 | 12.9 | 35crmo | Cutting edge bolt |
| 5P8361 | 0.9 | 1-1/4″UNC-7X5″ | 02091-12030/198-71-21730 | 12.9 | 35crmo | Cutting edge bolt |
| 198-1092 | 1.1 | 1-1/4″UNC-7X5-1/2″ | 12.9 | 35crmo | Cutting edge bolt | |
| PB-807 | 1.2 | 1-1/4″UNC-7X5-3/4″ | 12.9 | 35crmo | Cutting edge bolt | |
| 3K9770 | 0.23 | 1-1/4″UNC-7 | 02290-1203/U14225 | 10 | 45 | Hex nut |
| 5P8362 | 0.25 | 1-1/4″UNC-7 | 195-71-61950 | 10 | 45 | Hex nut |
| 4K0684 | 0.12 | 1 1/4″ | 01643-33380/195-71-33380 | 10 | 45 | Washer |

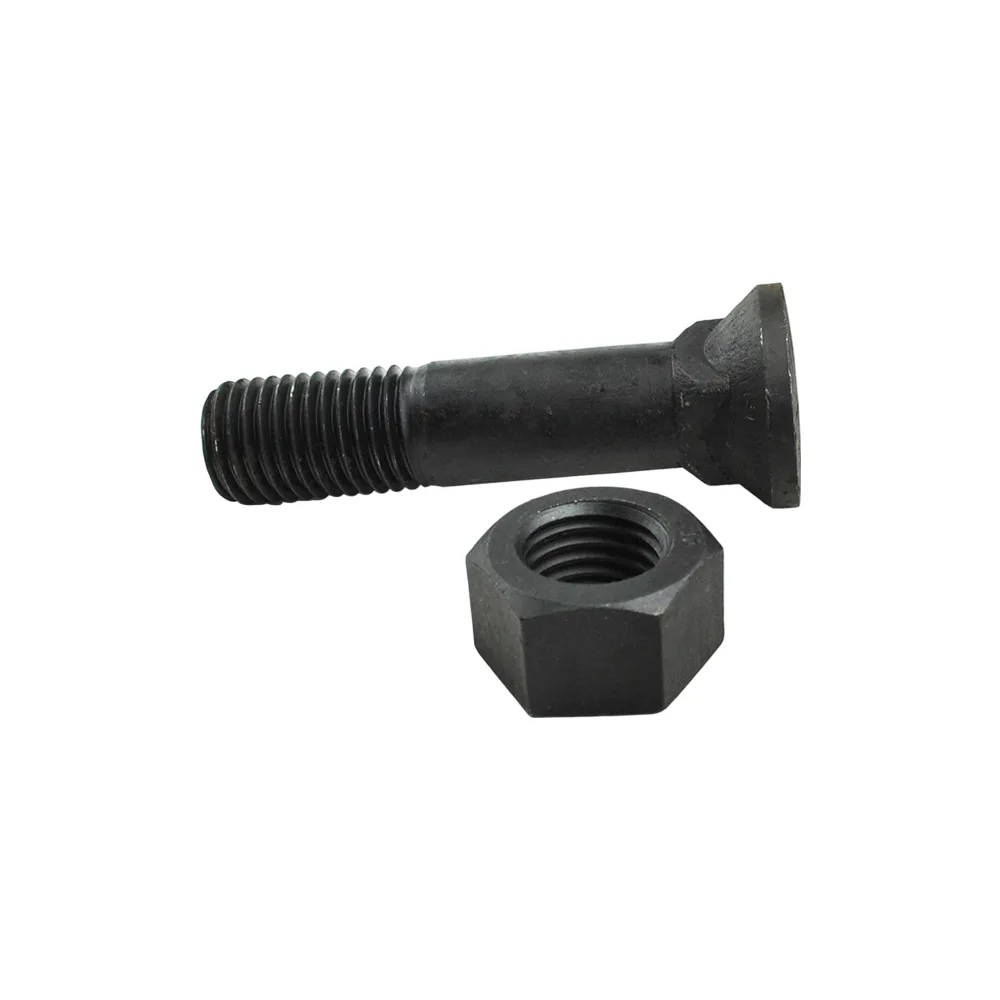

5P-8361 Cat style plow bolt 1-1/4″UNC-7X5″ can be widely used for cuttding edges, blades, steel track parts as well as other components. It`s heavy-duty lock nut, fastening nut, blade & track fixing nut, CAT dozers, graders & scraper wear parts, fully compatible with CAT heavy-duty fixing nuts, 3K9770 lock nuts and complete heavy-load fastening assembly system.
