Cross Part No.: 4F-3657,4F3657, 232-70-12460, 5610145
Weight: 0.13 kgs
Brand: OEM / Aftermarket
Replacement Brand: CATERPILLAR, CAT
Machinery Model: 120, 120G, 120H, 120H ES, 120H NA, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 130G, 135H, 135H NA, 140, 140G, 140H, 140H ES, 140H NA, 140K, 143H, 14E, 160G, 160H, 304, 304.5, 304C CR, 305, 305.5D
Thread Specification: 5/8″UNC-11X2-3/4″
Material: Steel 40Cr, 35CrMo
Grade: 8.8, 10.9-12.9
Color: Black or customized
Process: Precision die stamping+integral quenching and tempering+thread precision finishing
Packing: Standard carton & plywood case packaging
Tensile: >1100Rm-N/mm
Hardness: 38-44HRC
Torque: Standard Cat high-load torque
| Part number | Weight | Dimension | Cross part number | Material | Grade | Description |
| 4F3664 | 0.08 | 5/8″UNC-11X1-1/2″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4F3653 | 0.09 | 5/8″UNC-11X1-3/4″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4F3654 | 0.1 | 5/8″UNC-11X2″ | 02090-11050 | 12.9 | 35crmo | Cutting edge bolt |
| 3F5108 | 0.11 | 5/8″UNC-11X1-1/4″ | 232-70-12450/02090-11060 | 12.9 | 35crmo | Cutting edge bolt |
| 4F3656 | 0.12 | 5/8″UNC-11X2-1/2″ | 232-70-12590 | 12.9 | 35crmo | Cutting edge bolt |
| 4F3657 | 0.13 | 5/8″UNC-11X2-3/4″ | 232-70-12460/5610145 | 12.9 | 35crmo | Cutting edge bolt |
| 4F3658 | 0.14 | 5/8″UNC-11X3″ | 02090-11080 | 12.9 | 35crmo | Cutting edge bolt |
| 4F3665 | 0.16 | 5/8″UNC-11X3-1/2″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4F0391 | 0.17 | 5/8″UNC-11X3-3/4″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4F3671 | 0.18 | 5/8″UNC-11X4″ | 12.9 | 35crmo | Cutting edge bolt | |
| 4K0367 | 0.03 | 5/8″UNC-11″ | 02290-11016/232-70-12480/8660481 | 10 | 45 | Hex nut |
| 5P8247 | 0.02 | 5/8″ | 01643-31645/8T4122 | 10 | 45 | Washer |

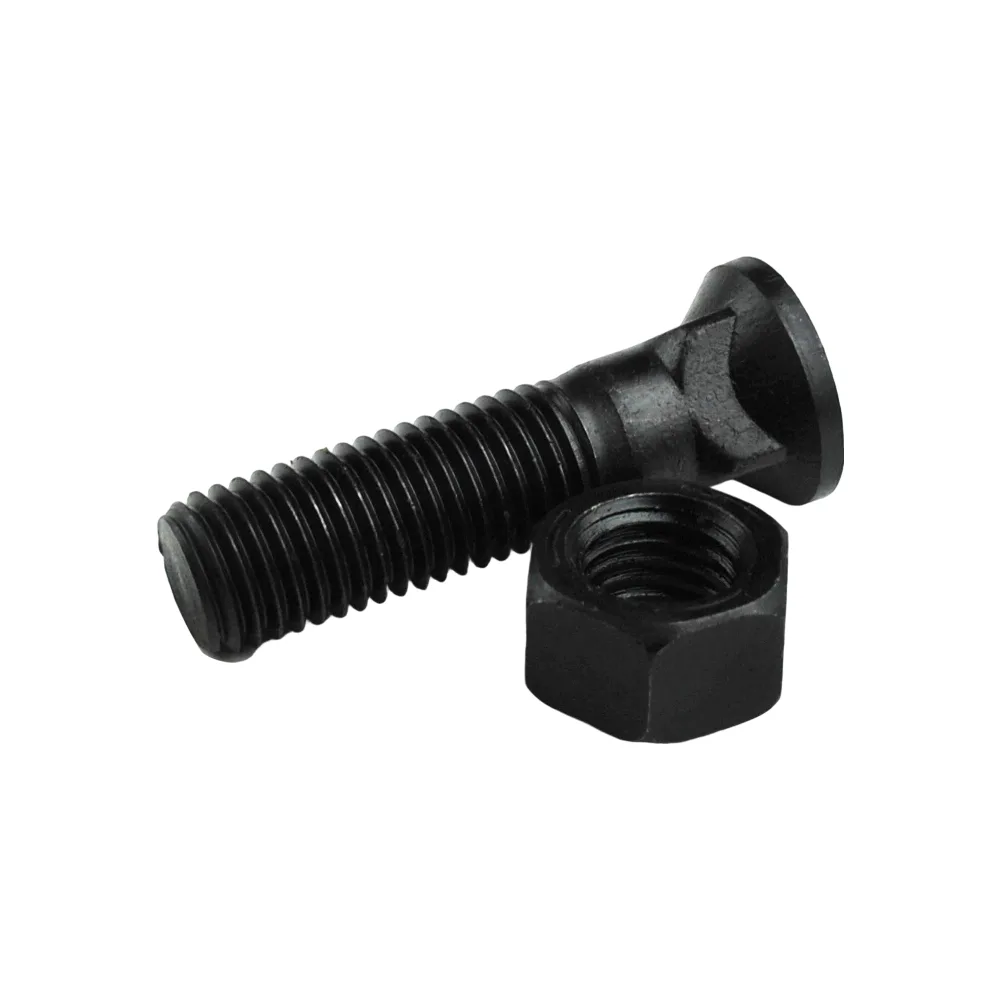

4F-3657 Cat style plow bolt 5/8″UNC-11X2-3/4″ can be widely used for cuttding edges, blades, steel track parts as well as other components. It`s heavy-duty lock nut, fastening nut, blade & track fixing nut, CAT dozers, graders & scraper wear parts, fully compatible with CAT heavy-duty fixing nuts, 4K-0367 lock nuts and complete heavy-load fastening assembly system.
