Cross Part No.: 2J-3505, 2J3505, 02290-11422/175-71-11530
Weight: 0.08 kgs
Brand: OEM / Aftermarket
Replacement Brand: CATERPILLAR, CAT
Machinery Model: 320D 336D 312C 988H D6R D6T D8 D9 D10 D11
Thread Specification: 7/8″UNC-9
Material: Steel-45# 40Cr, 35CrMo
Grade: 8.8, 10, 12.9
Color: Black or customized
Process: Precision die stamping+integral quenching and tempering+thread precision finishing
Packing: Standard carton & plywood case packaging
Tensile: >1050Rm-N/mm
Hardness: 38-44HRC
Torque: Standard Cat high-load torque
| Part number | Weight | Dimension | Cross part number | Material | Grade | Description |
| 1F7958 | 0.02 | 1/2″UNC-13 | 02290-10813/D4719 | 45 | 10 | Hex nut |
| 5P8245 | 0.015 | 1/2″ | 45 | 10 | Washer | |
| 4K0367 | 0.03 | 5/8″UNC-11″ | 02290-11016/232-70-12480/8660481 | 45 | 10 | Hex nut |
| 5P8247 | 0.02 | 5/8″ | 01643-31645/8T4122 | 45 | 10 | Washer |
| 2J3506 | 0.05 | 3/4″UNC-10″ | 154-70-22270/02290-11219/3K0453 | 45 | 10 | Hex nut |
| 5P8248 | 0.03 | 3/4″ | 01643-21845 | 45 | 10 | Washer |
| 2J3505 | 0.08 | 7/8″UNC-9 | 02290-11422/175-71-11530 | 45 | 10 | Hex nut |
| 5P8249 | 0.05 | 7/8″ | 01643-32260/01643-22245 | 45 | 10 | Washer |
| 2J3507 | 0.125 | 1″UNC-8 | 02290-11625/17M-71-21530 | 45 | 10 | Hex nut |
| 8J2933 | 0.135 | 1″UNC-8 | 3K5234 | 45 | 10 | Hex nut |
| 5P8250 | 0.07 | 1″ | 01643-22460/01643-32780 | 45 | 10 | Washer |
| 4J5977 | 0.21 | 1-18″UNC-7 | 195-71-52340 | 35crmo | 12.9 | Hex nut |
| 3S1349 | 0.1 | 1 1/8″ | 195-71-52350 | 35crmo | 12.9 | Washer |
| 3K9770 | 0.23 | 1-1/4″UNC-7 | 02290-1203/U14225 | 45 | 10 | Hex nut |
| 5P8362 | 0.25 | 1-1/4″UNC-7 | 195-71-61950 | 45 | 10 | Hex nut |
| 4K0684 | 0.12 | 1 1/4″ | 01643-33380/195-71-33380 | 45 | 10 | Washer |
| 198-71-21910 | 0.33 | 1-3/8″UNC-6 | 198-71-2199 | 45 | 10 | Hex nut |
| 198-71-21890 | 0.15 | 1 3/8″ | 45 | 10 | Washer |

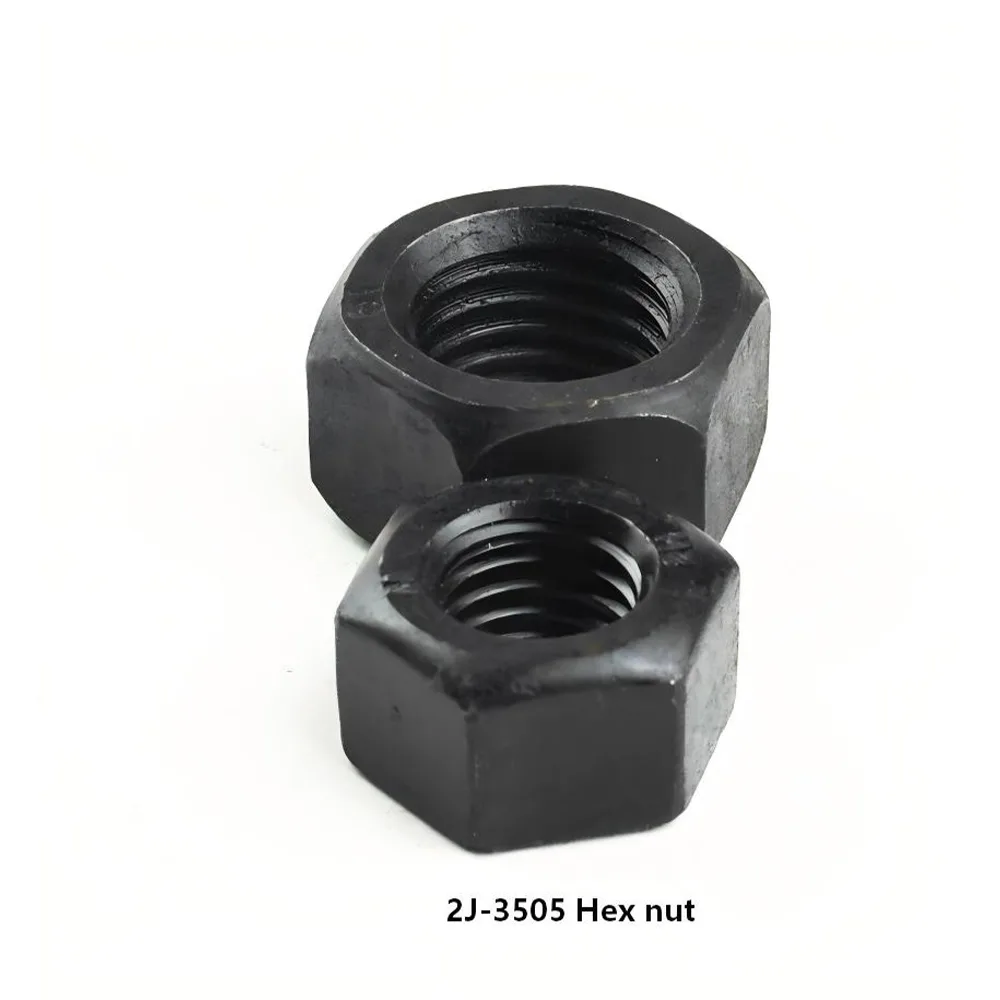

2J-3505 Cat style Hex Nut 7/8″UNC-9 can be widely used for cuttding edges, blades, steel track parts as well as other components. It`s heavy-duty lock nut, fastening nut, blade & track fixing nut, CAT dozers, graders & scraper wear parts, fully compatible with CAT heavy-duty fixing bolts, 2J-3507, 2J-3506 lock nuts and complete heavy-load fastening assembly system.
